On the brewhouse system, there have two vessels, three vessels , four vessels different configuration according to brewer master requirements. The more vessels, there are more pipeline and valves among them.

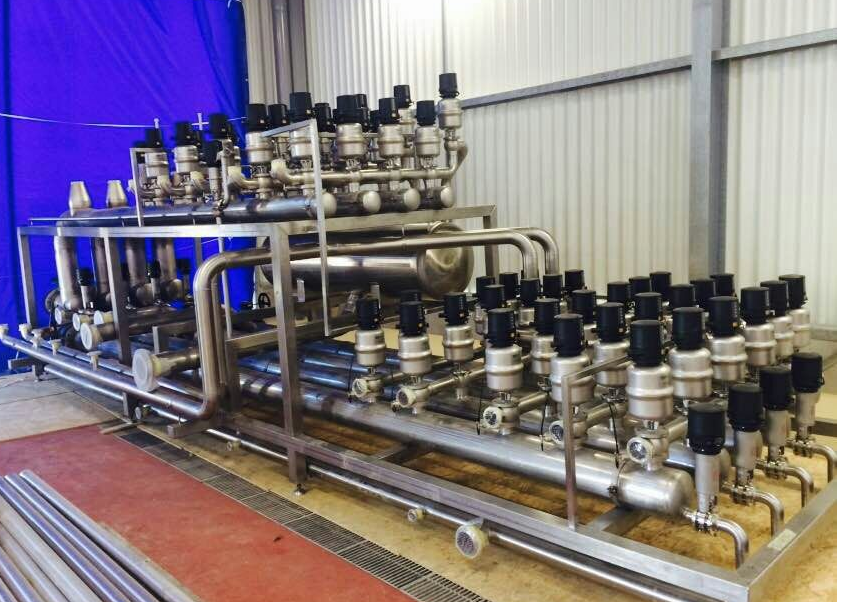

For large brewery, it usually use pneumatic valves replace of manual valve for operation easily.

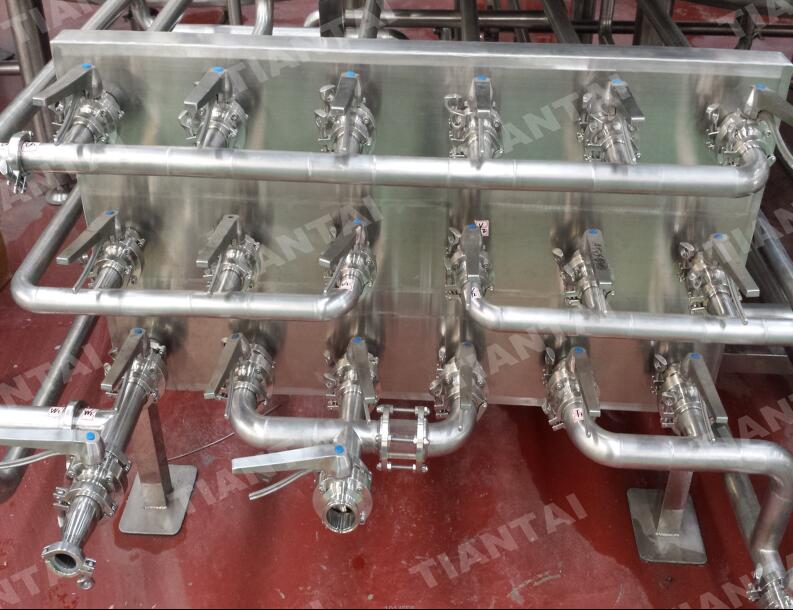

For microbrewery and nanobrewery, it will much economy to use manual valves replace of pneumatic valve considering the output. And it usually install microbrewery/nanobrewery in city center , The space usually limited, and pipeline usually go through below of tanks for effective utilization space, but it bring big inconvenience for brewer work. We special designed valve manifold for concentration manual valves on a plate front of brewhouse, it bring big convenience for brewer daily work.
Most brewermasters like this design, but it is not 100% perfect, with manifold, the pipeline self clean is not very good like direct pipeline, the wort loss ratio is a little higher but within acceptable range.
If you like this design in your brewery, feel free to inform me.
Welcome your inquiry.
