Malt Miller | Brewhouse | Fermentater | Filling | Utilities
Why Global Clients Trust Tiantai
Engineered for Commercial Results
Efficient brewhouse design, flavor-stable fermentation, and optimized workflows.
One-Stop Brewery Construction
Planning, 2D/3D layout, manufacturing, installation & commissioning — all handled by one expert team.
Factory-Direct Stainless-Steel Quality
Equipment at competitive prices. Built in-house with full testing.
On-Site Training & Lifetime Support
Operators, automation, maintenance, and workflow training for stable production.

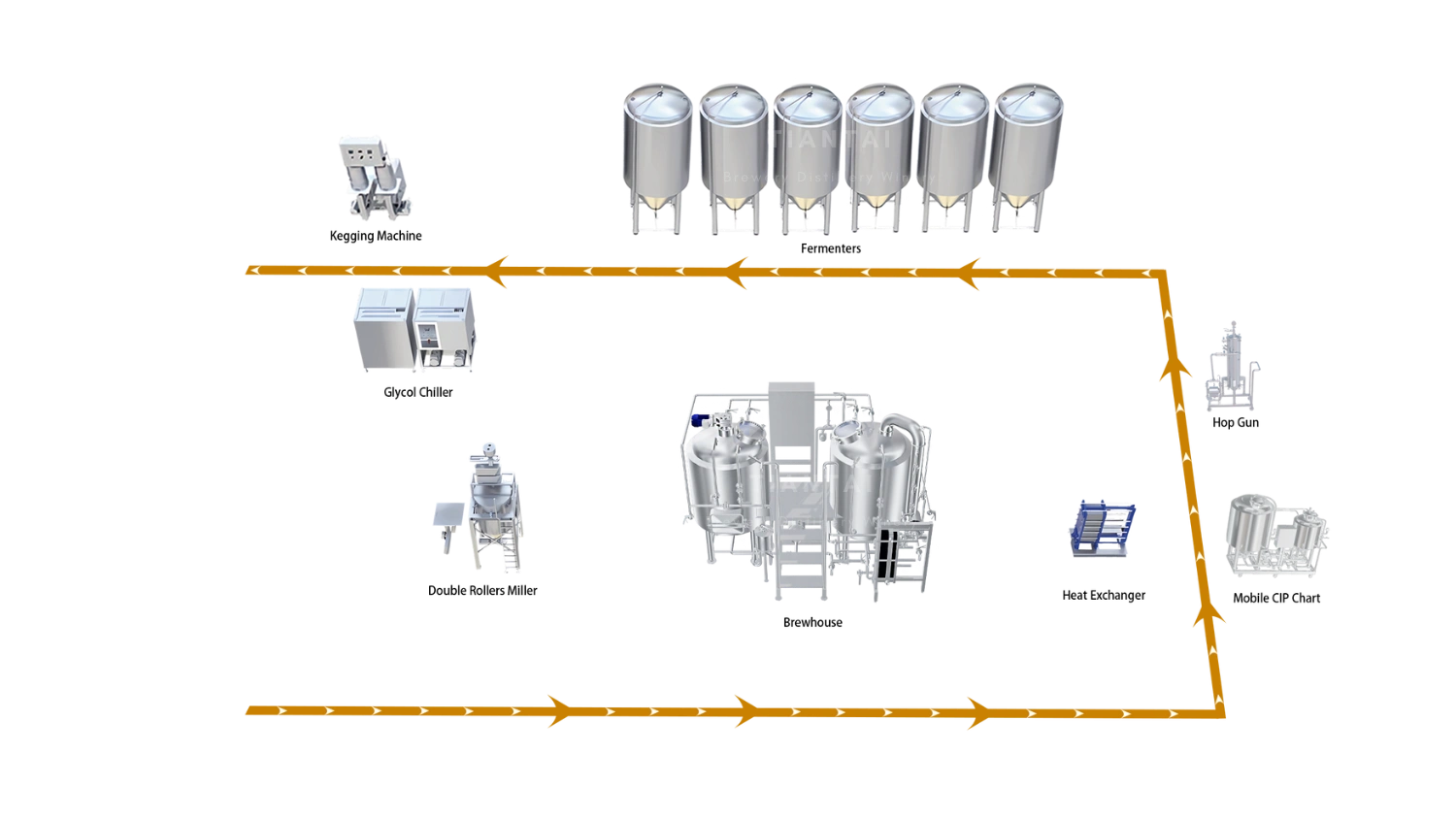

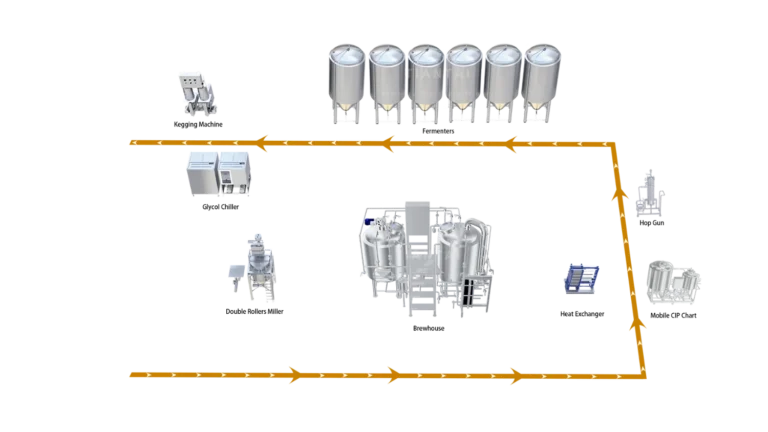

500L Microbrewery
- Capacity / Batch: 500L
- Malt miller: double rollers miller
- Brewhouse: mash lauter tun + kettle whirlpool tun + matching pumps, valves, pipes, sensors, etc. + operation platform
- A 2- or 3-vessel brewhouse is recommended for cost-effective and space-saving operations. Additionally, a complete 4-vessel brewhouse is available for those seeking a precise process and flexible brew batch.
- Steam jackets or electricity as optional heating methods
- Fermenters structure: 500L*6
- Hot water supply (recommend): 1000L Hot liquor tank
- Refrigeration structure: 1000L glycol water tank*1 + 5P chiller
- Mobile CIP chart as an economical solution, structure: 100L hot water tank + 100L caustic tank + 100L acid tank
- Brewhouse Fermentation control: PID
- CIP control: PID
- PLC is available as your request
- Filling System
1000L Microbrewery
- Capacity / Batch: 1000L
- Malt miller: double rollers miller
- Brewhouse: mash lauter tun + kettle whirlpool tun + matching pumps, valves, pipes, sensors, etc. + operation platform
- A 2- or 3-vessel brewhouse is recommended for cost-effective and space-saving operations. Additionally, a complete 4-vessel brewhouse is available for those seeking a precise process and flexible brew batch.
- Steam jackets or electricity as optional heating methods
- Fermenters structure: 1000L*10
- Hot water supply: 2000L hot liquor tank
- Cold water supply: 2000L cold liquor tank
- Refrigeration structure: 2000L glycol water tank*1 + 10P chiller
- Mobile CIP chart as an economical solution, structure: 100L hot water tank + 100L caustic tank + 100L acid tank
- Brewhouse Fermentation control: PID
- CIP control: PID
- PLC is available as your request
- 2000L bright beer tank + filling system

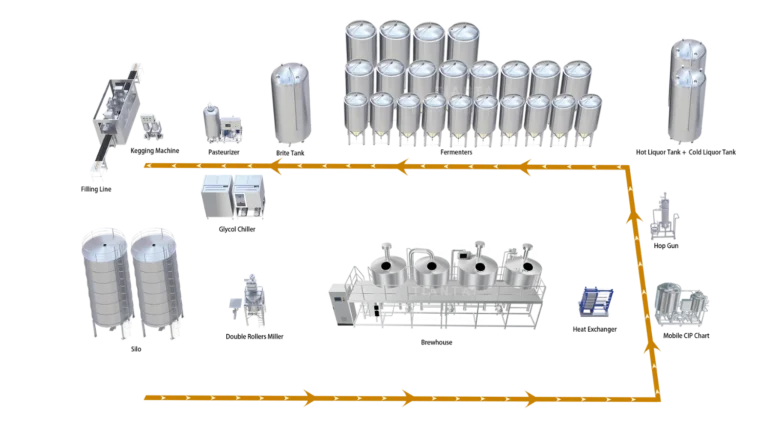

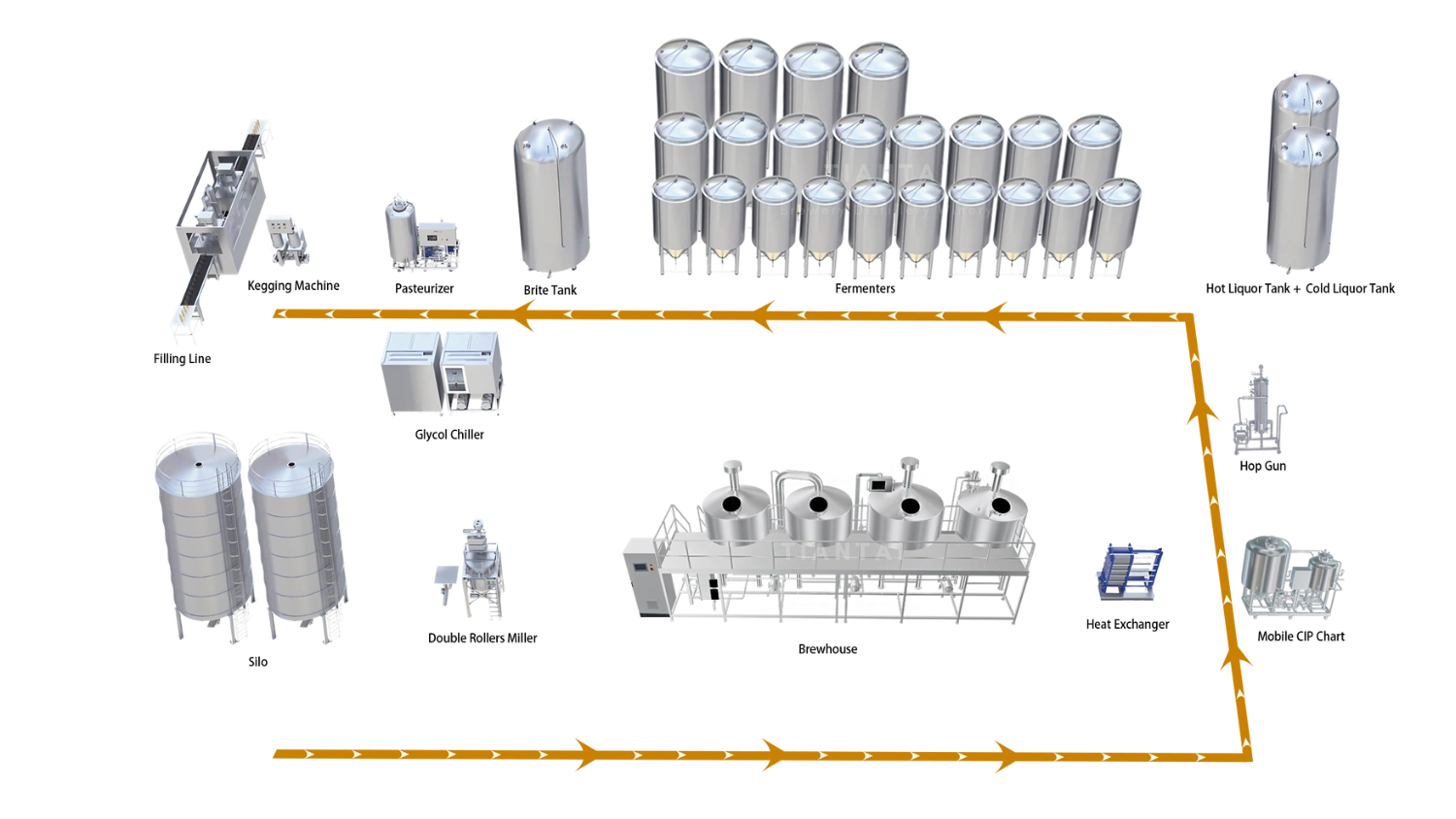

2000L Microbrewery
- Capacity / Batch: 2000L
- Malt miller: double rollers miller
- Brewhouse: mash tun + lauter tun + brew kettle + whirlpool tun + matching pumps, valves, pipes, sensors, etc. + operation platform
- We advise a PLC-controlled 4-vessel brewhouse to enhance brewing efficiency and facilitate multi-batch brewing. We also offer a 3-vessel brewhouse combination for customers with limited space.
- Steam jacket on bottom and side wall as optional heating methods
- Fermenters structure: 2000L*10 + 4000L*8 + 6000L*4
- Hot water supply: 4000L hot liquor tank
- Cold water supply: 4000L cold liquor tank
- Refrigeration structure: 4000L glycol water tank*1 + 30P chiller
- Mobile CIP chart as an economical solution, structure: 200L hot water tank + 200L caustic tank + 200L acid tank
- Brewhouse fermentation control: PLC
- CIP control: PLC
- PID is available as your request
- 4000L bright beer tank + filling system
3000L Microbrewery
- Capacity / Batch: 3000L
- Malt miller: double rollers miller
- Brewhouse: mash tun + lauter tun + brew kettle + whirlpool tun + matching pumps, valves, pipes, sensors, etc. + operation platform
- We advise a PLC-controlled 4-vessel brewhouse to enhance brewing efficiency and facilitate multi-batch brewing. We also offer a 3-vessel brewhouse combination for customers with limited space.
- Steam jacket on bottom and side wall or internal calandria as optional heating methods
- Fermenters structure: 3000L*8 + 6000L*10 + 12000L*10
- Hot water supply: 6000L hot liquor tank
- Cold water supply: 6000L cold liquor tank
- Refrigeration structure: 6000L glycol water tank*1 + 20P chiller*2
- CIP station: 1000L hot water tank + 1000L caustic tank + 1000L acid tank + 1000L disinfectant tank
- Brewhouse fermentation control: PLC
- CIP control: PLC
- PID is available as your request
- 6000L bright beer tank + filling system
5000L Microbrewery
- Capacity / Batch: 5000L
- Malt miller: Wet miller or double rollers miller
- Brewhouse: mash tun + lauter tun + brew kettle + whirlpool tun + matching pumps, valves, pipes, sensors, etc. + operation platform
- Steam jacket on bottom and side wall or internal calandria as optional heating methods
- Fermenters structure: 5000L*10 / 10000L*10 / 20000L*6
- Hot water supply: 10000L hot liquor tank (+15% headspace)
- Cold water supply: 10000L cold liquor tank (+15% headspace)
- Refrigeration structure: 10000L glycol water tank*1 + 30P chiller*2
- CIP station: 2000L hot water tank + 2000L caustic tank + 2000L acid tank + 2000L disinfectant tank
- Brewhouse fermentation control: PLC
- CIP control: PLC
- PID is available as your request
- 5000L brite tank*2 + 10000 brite tank*1 + filling system
Brewery Case
Tiantai has served 2800+ breweries with our equipment and solutions
Mad Hopper Brewing
–1000L Brewery Equipment In Spain
Краснопузофф. Авторская пивоварня
–2000L Brewery Equipment In Russia
St.Boi Brewery
–2500L Brewery Equipment In Australia
Moffat Beach Brewing Company
–2000L Brewery Equipment In Australia
Malting Pot Brewery
–1000L Brewery Equipment In France
Snake Lake Brewing Co
–3000L Brewery Equipment In Canada
Who We Are
Tiantai was founded in 2001. Provided services and solutions to more than 2,800+ customers worldwide.
Tiantai is a global beverage plants solution provider and supplier of all process plant equipment and machinery to the beer, spirits, winery, kombucha, and other beverage-related industries.
As one of the oldest suppliers of brewing, distilling, fermenting and filling equipment in China, Tiantai is recognized not only for high-quality equipment, but also for our technical expertise, design services and superior customer service.
Global Reach
We have solutions in use around the world, and an ever-expanding office network provides accessibility and responsive support. With an unwavering focus on innovation, quality and customer service, we employ highly skilled engineers, technicians and support staff, supported by our global network of agents and distributors.
Sustainability
The company is committed to continuous growth, maintaining a truly customer-focused team culture and being aware of our responsibility to the environment. We prioritize sustainable practices across all aspects of our and our customers’ operations, contributing to a more sustainable future for the industries and the planet.
Customers Say...
Good liquid brewing
We also purchased equipment from Shandong Tiantai for 2 different breweries. The customer service is great and we are happy with the quality of the equipment. We highly recommend Shandong Tiantai for all your brewery equipment.
Ballistic Beer
The reason we chose Tiantai over the other companies were:They had good technical knowledge.They had very competitive pricing.Their salesman wasn’t just a“yes”man, he worked hard to understand all of the specifics we had requested.They were happy to custom build any piece of equipment that I wanted and would indulge my personal preferences for certain items.
Wilddog - Tiemann Beer
We have won a Silver medal at the Africa Beer cup with our Shempa Ale in the Alternative beer category.Very happy about this and we are getting used to our Tiantai Brewery.Have also done our first can conditioning which looks promising.
Cerveza fauna
We are very happy to be your costumers. I had recommended you several times.We really liked you and your company, and please know that we will tell everyone what a great person you are.
XS Brewing Room
l was surprised again because of the stainless steel, finish, and the high-quality finish.People will come to see the breweries around me this weekend, already some brewer checked our equipment yesterday. Thanks for your hard work.
Malandar Brewing
We have already the equipment at home!!!
lt is sooooo nice!l! Please congratulations for all your team and for the workers that have done it. Amazing job !!
Shimoda Brewing
Everything is installed, and everything looks really good. We Brew 1 knocking out now.Thanks to you Helen and all Team Tiantai.We were pretty impressed with the brew system overall.
Brasserie de Puyricard
That is a very good news.
l always give very good feed back for Tiantai because l appreciate our relationship and your products. So now I know that you have more and more Clients in France, congratulations.
FAQ
How long does it take to build a brewery?
For a standard 10–20HL brewery, manufacturing usually takes 45–60 days, plus shipping time.
Installation and commissioning onsite typically take 7–20 days, depending on project size.
Do you provide brewery layout and engineering design?
Yes. We offer 2D/3D layout, utility connections, workflow planning, vessel sizing,and full project engineering — all included in the proposal.
Can Tiantai help install the equipment?
Absolutely. Our team provides on-site installation guidance, professional piping,commissioning, and operator training to ensure a perfect startup.
What materials do you use for the tanks?
Do you support automation?
Yes. Options include:
-Semi-automatic brewhouse control
-Fully automated brewhouse with PLC
-Automated fermentation control (temperature, cooling, CIP)
Can I start small and expand later?
Yes. Our tanks and brewhouse systems are designed for scalable, modular expansion, so you can grow production without replacing your entire system.
Do you provide after-sales support?
Yes — lifetime technical support, remote troubleshooting, replacement parts, and equipment upgrade solutions.
Which countries have you delivered to?
We have supplied breweries in 108 countries and regions.
