In the beer brewing industry, malt milling is a critical step during the mashing stage. The quality and consistency of milling significantly impact wort yield, filtration efficiency, and ultimately, the flavor stability of the beer. However, raw malt often contains impurities such as stones, metal fragments, and dust. Without effective pretreatment, these contaminants can damage milling equipment, hinder the mashing process, and reduce product quality. Malt pretreatment prior to milling primarily utilizes three key devices: vibrating de-stoners, permanent magnetic dust collectors, and pulse dust collectors. What are their respective functions?

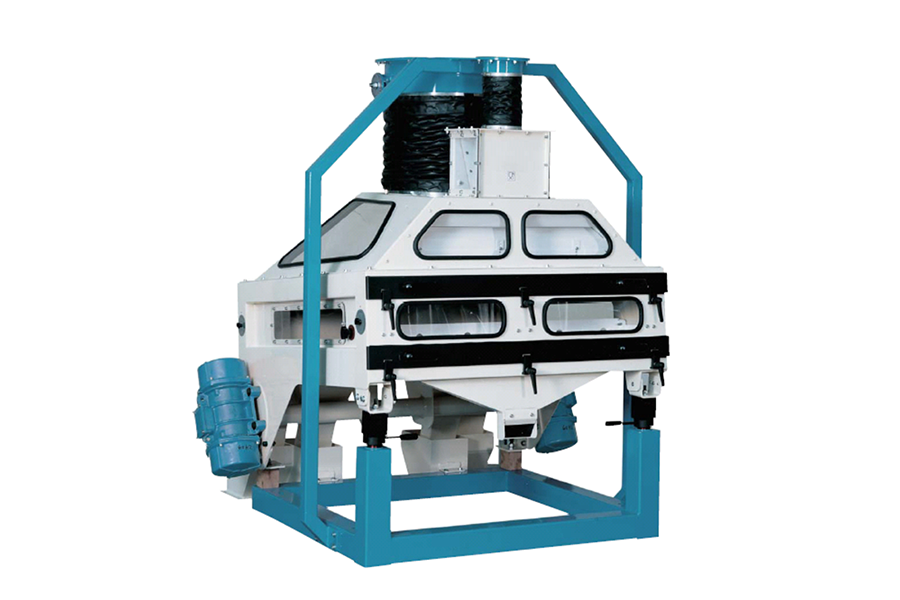

Gravity Stone Remover
Vibrating de-stoners utilize the principle of density separation to effectively remove high-density impurities such as stones, glass fragments, and ceramic shards from the malt.
After the malt enters the machine, high-frequency vibrations create a tossing motion in the malt particles. Due to the difference in inertia, heavier impurities sink to the bottom, while the lighter malt particles are transported upward by the combined effects of vibration and controlled airflow. This ensures efficient stratification and separation, preparing the malt for the next processing stage.

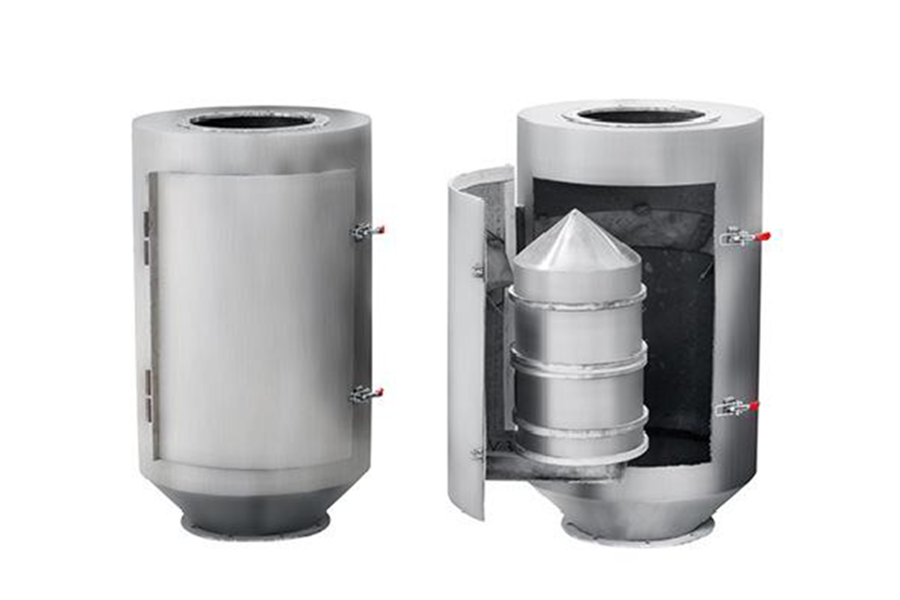

Permanent Magnet Drum
Metal fragments such as iron filings, nails, and rust particles can severely damage the crusher and pose a food safety risk. The permanent magnetic drum iron separator is designed to remove iron impurities from the malt flow.
As the malt passes through the magnetic field, any magnetic particles are attracted and adhere to the drum surface, while the clean malt continues along its designated path. Collected metal impurities are regularly removed for safe disposal.
Pulse Dust Collector
Fine malt dust not only affects hygiene but also poses a fire and explosion hazard in industrial environments. The pulse jet dust collector provides an effective solution by filtering particulate matter from the air in the processing area.
The dust-laden air first passes through internal baffles for pre-separation. The air then passes through a series of filter bags, capturing even the finest particles. When the resistance increases (140-170 mm H2O), a pulse valve releases compressed air, rapidly cleaning the filter bags and collecting the dust in the hopper below.
The malt pretreatment line is configured as follows:
Gravity Stone Remover ā Permanent Magnet Drum ā Pulse Dust Collector ā Malt mill
This process ensures that the malt is free of dense impurities, magnetic metals, and suspended dust before entering the milling stage. As a result, the system maintains a residual impurity level of ā¤ 0.02%, meeting the high standards of both high-end craft breweries and large commercial beer producers.
Investing in a comprehensive malt pretreatment system is no longer optionalāit’s essential for breweries striving for top product quality and operational efficiency. By integrating a vibratory destoner, magnetic separator, and pulse dust collector, producers can ensure a clean, safe, and optimized brewing process from the outset.
